Among the myriad products that Loctite churns out, the 242 and 243 versions hold a special place. They are the celebrities of the Loctite portfolio, standing head and shoulders above the rest. And there’s a solid reason behind their popularity. These products belong to the elite “Threadlocker” family, a distinct type of adhesive that mechanics swear by.
While both the 242 and 243 versions may seem identical at first glance, there’s a subtle difference that sets them apart. Loctite 243 is essentially an upgraded version of the popular Loctite 242. You might ask, “What’s improved?” Well, it’s the oil tolerance. Loctite 243 is more adept at handling oil than its predecessor, the 242.
For first-time users, this difference might not be evident. However, seasoned users of 242 will quickly appreciate the superior capabilities of 243. So, if you’ve been using Loctite 242, here’s why you should consider shifting to 243.

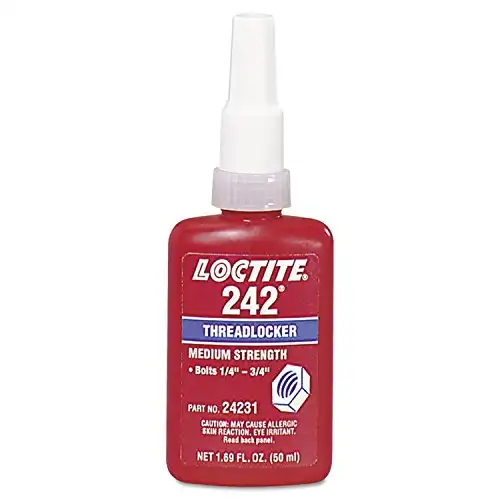

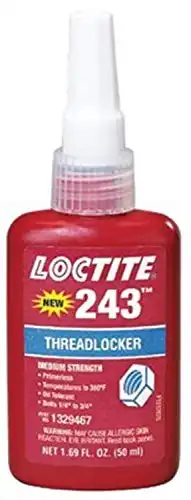

A Closer Look at Loctite 242 and 243
Features, Benefits, and Applications
| FEATURES | LOCTITE 243 | LOCTITE 242 |
| Strength | Medium | Low |
| Form | Liquid | Liquid |
| Setting Time | 15 minutes | 15 minutes |
| Breakaway Torque | 26 Nm | 5 Nm |
| Loctite 243 temperature range | Up to 300°F | Up to 300°F |
| Chemical Resistance | Mild | Mild |
| Shelf Life | 24 months | 24 months |
Safeguarding Threads
Many thread lockers can cause severe damage to threads. Fortunately, this isn’t the case with Loctite 242. In fact, this adhesive has the potential to safeguard the threads!
Ensuring Fastener Stability
The Loctite 242 adhesive absorbs the shock generated by vibrations after application. This results in more durable metal fasteners.
Removable Solution
Loctite 242 – Made a mistake or need to disengage the thread locker? No worries! It can be removed with some basic hand tools. You might need to exert a bit of pressure, but it will eventually come undone.
Loctite 243 – This one’s a bit more stubborn. You’ll need to apply heat and use some serious elbow grease.
Loctite 242 and Its Low Oil Resistance
While Loctite 242 can maintain your threads in top-notch condition, it lacks high oil resistance. This is a significant downside, as the adhesive is often used with mechanical parts that frequently interact with lubricants and oils.
The Sealing Potential of Loctite 243
Loctite 243 does double duty. Not only does it serve as a thread protector, but it also forms a seal against potential leakage.
Resisting Vibrations and Thread Corrosion
Once applied, the adhesive minimizes the vibration of the nuts, preventing the loosening of the metal parts. By absorbing all the shock, the adhesive can maintain the health of mechanical parts for an extended period.
The enhanced Loctite 243 offers protection against corrosion, making it the ideal choice for thread protection.
The Challenge of Dismantling Loctite 243
The removal of Loctite 243 can be a bit of a challenge. This adhesive is incredibly robust. Sometimes, hand tools simply can’t get the job done. In such cases, you’ll need some heat, perhaps from a blowtorch or a propane gun.
Loctite 243 vs 242: A Detailed Comparison
Strength and Material Compatibility: A Closer Look
Our first contenders, the Loctite 243 and 242, are both rockstars in the world of adhesives. Mechanics often reach for the Loctite 243 to secure and seal metal nuts and bolts. It’s their go-to solution for damping down shock and vibration. On the other hand, the Loctite 242 is a specialist in securing threaded fasteners.
Strength is a vital feature for any adhesive. When pitted against each other, the Loctite 243 has a slight edge over 242 in the strength department. The difference isn’t a game-changer, but it’s certainly noticeable. Both these adhesives can create an impressively strong bond between metals, but the 243 takes the lead by a small margin.
Oil Resistance and Maintenance: What You Need to Know
The Loctite 242 does a fantastic job at keeping your threads in pristine condition. However, it falls short in the oil resistance arena. This is a significant drawback, considering the adhesive is often applied to mechanical parts, which frequently come into contact with lubricants and oils.
Enter the Loctite 243, the 242’s upgraded sibling. With improved oil tolerance, it can maintain its adhesive capabilities, even with oil present.
Curing Time and Removal: The Lowdown
When it comes to curing time, both the Loctite 243 and 242 are on par, requiring a full 24 hours to completely cure.
Loctite 243 vs 242: Key Factors to Consider When Making Your Choice
The right adhesive for you depends on several factors, including material type, application, and strength requirements. Here are some crucial points to ponder when choosing between Loctite 243 and 242.
Strength Requirements and Material Considerations
If you’re seeking a high-strength adhesive that can stand up to heavy loads and vibrations, Loctite 243 should be your pick. But, if you’re after a low-strength adhesive that can prevent corrosion, making fastener removal a breeze, go for the Loctite 242.
The type of material you’ll be working with is also a crucial factor. If you’ll be dealing with active metals, like steel, aluminum, and brass, then Loctite 243 is your best bet. But, if you’re working with copper or certain plastics, the Loctite 242 may be more suitable.
Curing Time: A Quick Comparison
When it comes to adhesive curing time, Loctite 242 races ahead, offering faster results. However, if you have the luxury of time and seek a stronger bond, then Loctite 243 is your go-to choice.
The Case for Upgrading to Loctite 243
While I’m an avid fan of Loctite 243, I totally understand the comfort of familiarity with Loctite 242. After all, it’s been tried, tested, and trusted by many. The thought of spending extra bucks on a seemingly similar product might raise some eyebrows. But here’s why Loctite 243 is worth every cent of that upgrade:
- Strength: From my extensive experience with both products, I can confidently say that Loctite 243 offers a noticeably stronger bond than 242. Not a colossal difference, but enough to give it an edge.
- Oil Resistance: Loctite 243 stands out for its superior oil resistance, a significant upgrade over 242. This makes it ideal for use on threads, reflecting Loctite’s commitment to customer feedback.
- Time-Saving: For those who value their time (like me), the beauty of Loctite 243 lies in its oil resistance. You can skip the tedious cleanup of oily threads and apply 243 right away, saving you precious time and energy.
Overall, Loctite 243 offers stronger, oil-resistant, and time-saving benefits over 242, and without breaking the bank. It’s a worthwhile investment that pays off in the long run.
Both Loctite 242 and 243 excel in medium-strength applications. You can confidently use them for thread locking in:
- Rocker studs
- Oil pans
- Disc brake calipers
- Pulley assemblies
- Valve cover bolts
- Lock washers
- Lock nuts
- Carburetor studs
- Hand tools
Decoding the Mysteries of Loctite 243 and 242: Your FAQs Answered!
Unraveling the Removal Process for Loctite 243 and 242
The versatility of Loctite 242 comes in its ability to create a protective barrier between the fastener and the mating surface. This not only prevents corrosion but also makes fastener removal a breeze when required. Loctite 243, on the other hand, forms a robust bond that might necessitate heat or specific tools to remove the fastener.
Understanding the Cure Times for Loctite 243 and 242
Loctite 243 boasts a quick drying process. Typically, it’s dry enough to handle lightly within 15 minutes of application. However, a full 24-hour cure time is recommended before regular use. The same time frames apply to Loctite 242.
Diving into the Waterproof Qualities of Loctite
Most Loctite adhesives, including the 242 and 243 variants, are waterproof. They are designed to withstand exposure to moisture without compromising their adhesive properties.
Exploring Color Variations in Loctite 243
Loctite 243 traditionally comes in a distinct blue color. You’ll find the same color for Loctite 242. However, occasional internet searches may reveal clear versions of these adhesives.
Unveiling the Storage Lifespan for Loctite 243 and 242
Unopened bottles of Loctite 243 and 242 can be stored for at least 12 months. After this period, you might notice the adhesive beginning to cure inside the bottle. Cool, air-free storage environments may extend this lifespan slightly.
Discovering Suitability for Plastics, Copper, and Stainless Steel
- Loctite 243 is not recommended for use on plastics.
- Loctite 242 is not considered suitable for use on copper.
- Both Loctite 242 and 243 can be used safely on stainless steel.
Does Loctite 242 Require a Primer?
Regrettably, the original Loctite 242 does require a primer for optimal performance. I would suggest upgrading to Loctite 243, a medium-strength nut locker. This adhesive prevents properly-torqued fasteners from loosening due to vibration, yet allows for hand tool disassembly. Loctite 243 Primerless will adhere to inactive metals without the need for a primer.
Which Loctite Variant is the Strongest?
When it comes to strength, the Red Threadlocker takes the crown. It cures fully in 24 hours and is so strong that heat is required for disassembly. Look for Loctite 270 or 276 for the strongest bonds.
Is Loctite 242 Oil Resistant?
Unfortunately, Loctite 242 is not oil-resistant. If you wish to apply this threadlocker to threads with residual oil, you’ll need to thoroughly clean the area before application. However, Loctite 243, an upgraded version of 242, boasts oil tolerance and can be applied even if oil is present.
Exploring Other Loctite Threadlockers
Loctite offers a wide range of products, but their Threadlockers are the most popular. Based on my experience, I believe I’m well-equipped to guide you through the best Loctite Threadlockers currently available, and help you understand the differences between them.
Loctite 221 & 222: Ideal for Small Threads
Loctite 221 and 222 are your go-to options when you need a threadlocker for small threads. Engineered for threads up to M12 in size, these low-strength threadlockers have a thin consistency due to their low viscosity. This makes them perfect for smaller threads that need an adhesive with a bit more flow.

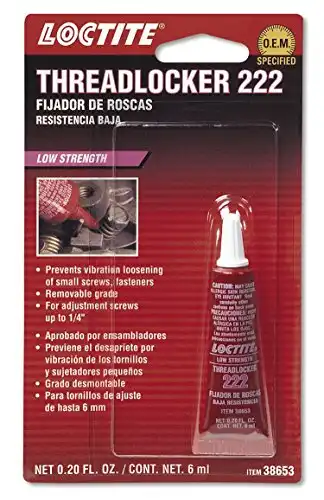

Loctite 222 Low Strength
- Designed for small screws under 1/4″, including threaded fasteners
- Can handle temperatures up to 300°F
- Sets quickly, typically within 10 minutes
Loctite 272 & 278: Perfect for High-Strength Applications
Need a threadlocker that can handle high temperatures? Say hello to Loctite 272. This medium viscosity adhesive is designed specifically for high-strength use, making it the perfect choice for those projects where heat is a factor. Remember, this is a high-strength product, so it’s best used for permanent thread locking.
Loctite 272 High Temp
- Designed for fastener sizes from 3/8″ to 1 1/2″
- Can withstand a maximum temperature of 450°F
- Sets in 40 minutes to 1 hour
- Ideal for use on crankshaft bolts, shock bolts, ring gear, idler bearings
Loctite 270 & 276: Ultimate High-Strength Threadlockers
For those projects where you need an adhesive that’s not going anywhere, consider Loctite 270 and 276. These high-strength threadlockers are designed specifically for permanent application. They’re your best bet for situations where vibrations may cause bolts to loosen.

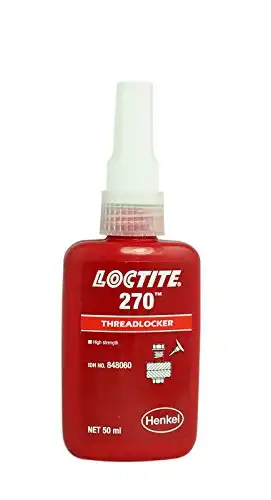

Loctite 270 High Strength
- Designed for high-strength, vibration-resistant applications

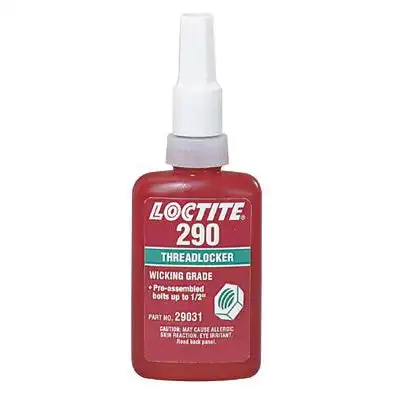

Loctite 290: The Wicking Wonder
Wicking threadlockers, like Loctite 290, might seem confusing, but they’re actually quite simple. These adhesives have an extremely low viscosity, allowing them to penetrate existing bolts on threads without the need for disassembly. Simply apply the threadlocker and it will seep into the threads, keeping your bolts secure.
Loctite 290 Wicking
- Designed for easy application without disassembly
Conclusion: Choosing the Right Adhesive for Your Needs
Loctite 243 and 242 are both solid choices for preventing the loosening of threaded fasteners. But they each have their own strengths. If you’re working with heavy loads and vibrations, Loctite 243, with its high-strength formulation, is your best bet. But if you need something that can stave off corrosion and still allow for easy fastener removal, opt for Loctite 242. Consider the type of material, the specific application, and the strength requirements when choosing between these two adhesives.
